Beta function
Fourier series

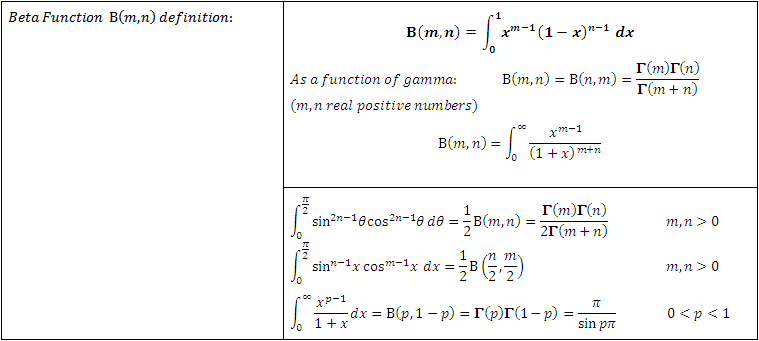

Beta function

Print beta function

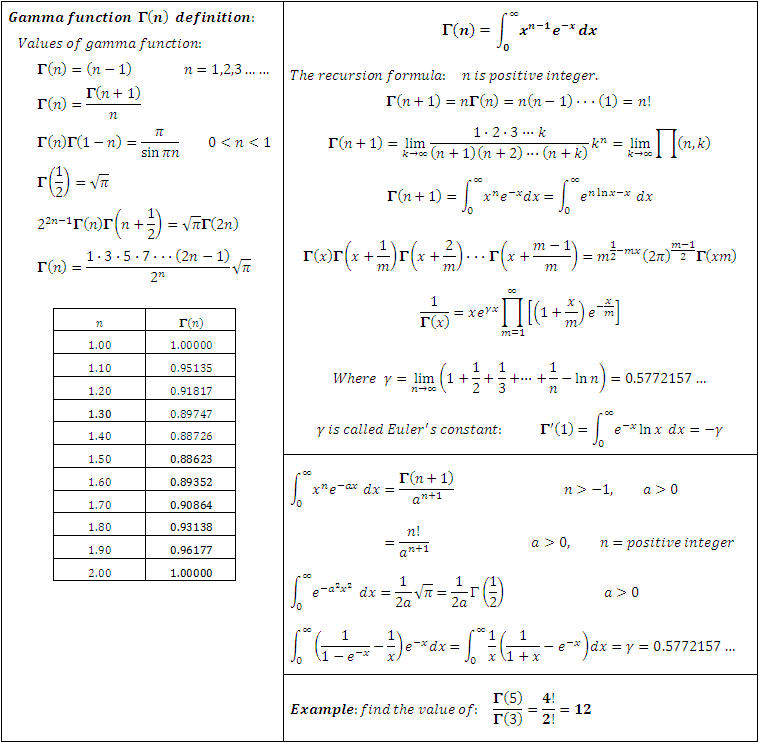

Gamma function

Print gamma function

Fourier series

Print Fourier series
Fourier series definition Fourier definition
Fourier An Bn
A function   f(x)   is periodic with a period   T   if the domain of   f(x)   contains   x + T   whenever it contains x,   and if   f(x) = f(x + T).
The Fourier series above should be with a period of   T. Frequency
Any periodic waveform can be expressed by Fourier series provided that (Dirichlet conditions):
(1) if the function is discontinuous there are a finite number of discontinuities in one period.
(2) it has a finite average value for the period T.
(3) it has a finite number of positive and negative maxima.

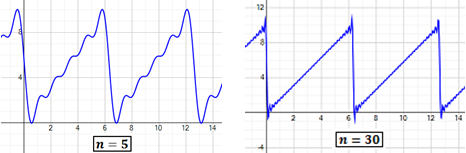

Fourier series of:     sawtooth wave
Sawtooth wave
Sawtooth wave
Sawtooth wave
Fourier series of:     square wave
Sawtooth wave
Fourier series of:     triangular wave
Triangular wave
Fourier series of:     halfsinus wave
Triangular wave
